105um Single Shiny Heavy ED PCB Copper Foil

Brand Name : OEM

Certification : ISO / SGS / RoHS

Place of Origin : China

MOQ : 50kg

Price : Negotiable

Payment Terms : L/C, T/T

Delivery Time : 10 - 15 Days

Packaging Details : Exporting Wooden Case

Supply Ability : 550T Per Month

Alloy Number : C11000

Material : Red Copper

Shape : Sheet Size

Density : 8.9g/cm3

Thickness : 1/4OZ~3OZ(9um~105um)

Width : 1295mm*1295mm

Application : Vehicle

HS Code : 7410110000

Contact Now

105um Single Shiny Heavy ED PCB Copper Foil

Specifications:

We provide the 1/3oz/ft²to 2oz/ft²(nominal thickness 105μm~500μm)very-low-profile, high temperature elongation, and heavy (VLP-THE-HF)ED copper foils, they are sheet products; and the max width is 1295mm. They have the perfect physical characteristics of the fine and uniform crystal structure, the low profile, the high intensity, and high elongation, and they also have the PCB manufacturing performances of the high peel strength, no copper powder movement, the clear figure. They can be used in production of the extreme current PCBs which are used in the extremer circuits of the electric power and the motor vehicles.

Thickness: 1/4OZ～3OZ(9µm～105µm)

Max Size: 1295mm×1295mm

Performance:

Classification		Unit	9μm	12μm	18μm	35μm	70μm	105μm
Cu Content		%	≥99.8
Area Weigth		g/m2	80±3	107±3	153±5	283±7	585±10	875±15
Tensile Strength	R.T.(23℃)	Kg/mm2	≥28
	H.T.(180℃)		≥15			≥18	≥20
Elongation	R.T.(23℃)	%	≥5.0		≥6.0	≥10
	H.T.(180℃)		≥6.0			≥8.0
Roughness	Shiny(Ra)	μm	≤0.43
	Matte(Rz)		≤3.5
Peel Strength	R.T.(23℃)	Kg/cm	≥0.77	≥0.8	≥0.9	≥1.0	≥1.5	≥2.0
Degraded rate of HCΦ(18%-1hr/25℃)		%	≤7.0
Change of color(E-1.0hr/200℃)		%	Good
Solder Floating 290℃		Sec.	≥20
Appearance(Spot and copper powder)		----	None
Pinhole		EA	Zero
Size Tolerance	Width	mm	0~2mm
	Length	mm	----
Core		Mm/inch	Inside Diameter 79mm/3 inch

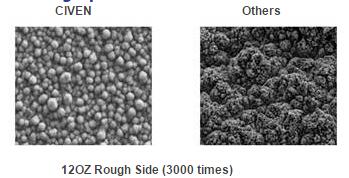

Metallographic:

105um Single Shiny Heavy ED PCB Copper Foil
